Μέσα από τρυπάνι ψυκτικού
>
2 Flute Coolant Through Drill for Aluminum High Speed CNC Carbide Drill Bit with Internal Coolant Channels Precision Hole Making Tool

2 Flute Coolant Through Drill for Aluminum High Speed CNC Carbide Drill Bit with Internal Coolant Channels Precision Hole Making Tool

Ονομασία μάρκας: AMG
Αριθμός μοντέλου: DIN-5D
MOQ: 3-10PCS
Πληροφορίες συσκευασίας: Πλαστικός σωλήνας
Όροι πληρωμής: Τ/Τ/Τηλεοπτική κάρτα
Πληροφορίες λεπτομέρειας
Τόπος καταγωγής:
Κίνα
Πιστοποίηση:
ISO9001
Όνομα Προϊόντος:
2 Ψυκτικό υγρό φλάουτας μέσω τρυπανίου για αλουμίνιο
Καταγωγή:
Τζιάνγκσου Κίνα
OEM/ODM:
Διαθέσιμο
Κατεύθυνση κοπής:
Δεξί χέρι.
Υλικό:
Στερεό καρβίδιο
Επιχρισμός:
Μη επικαλυμμένα
Διάμετρος:
432mm
Συνολικό μήκος:
50400mm
Επίδραση:
30°/προσαρμοσμένο
Μέθοδος ψυκτικού:
Εσωτερικό ψυκτικό
Δυνατότητα προσφοράς:
30000-100000 κομμάτια το μήνα
Επισημαίνω:

Precision Hole Making Tool

,

High Speed Carbide Drill Bit

Περιγραφή προϊόντων
2 Flute Coolant Through Drill for Aluminum High Speed CNC Carbide Drill Bit
Product Specifications
Attribute Value
Product name 2 Flute Coolant Through Drill for Aluminum
Origin Jiangsu China
OEM/ODM Available
Cutting direction Right hand
Material Solid carbide
Coating Uncoated
Diameter 4-32mm
Overall length 50-400mm
Helix 30°/customized
Coolant method Inner coolant
Product Overview
The 2 Flute Coolant Through Drill is a high-performance carbide drill bit specifically engineered for precision drilling in aluminum and non-ferrous metals. Featuring internal coolant channels and an optimized 2-flute design, this drill delivers exceptional chip evacuation, reduced heat buildup, and extended tool life in high-speed CNC machining applications.
Key Features
  • 2-Flute Geometry - Provides excellent chip evacuation, preventing clogging in deep-hole drilling.
  • Internal Coolant Channels - Directs high-pressure coolant (up to 70 bar) to the cutting edge, reducing heat and extending tool life.
  • Carbide Substrate - Ultra-fine grain carbide ensures durability and wear resistance in high-speed operations.
  • Aluminum-Optimized Design - Special rake angle and polished flutes minimize material adhesion (BUE).
  • High-Speed Machining (HSM) Ready - Stable performance at 20,000+ RPM (varies by diameter).
  • Precision Ground Tip - Self-centering geometry for accurate hole positioning (±0.01mm tolerance).
Performance Advantages
  • 3-5× Longer Tool Life - Carbide + coolant reduces wear vs. standard drills.
  • Faster Cycle Times - Optimized for high-speed peck drilling in aluminum (up to 3× faster than HSS).
  • Superior Hole Quality - Achieves IT8-IT9 tolerance with Ra 0.8-1.6μm surface finish.
  • Deep-Hole Capable - Stable performance up to 10× diameter depth (with coolant support).
  • Reduced Burrs - Sharp cutting edges produce cleaner hole exits.

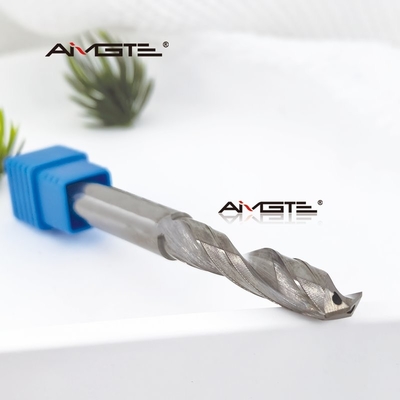

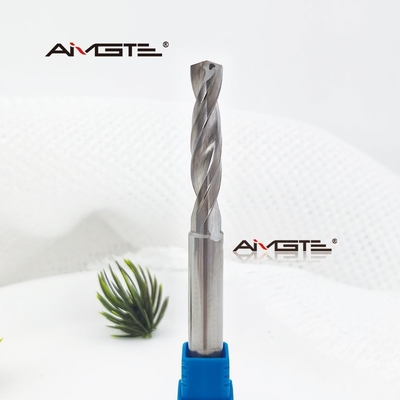

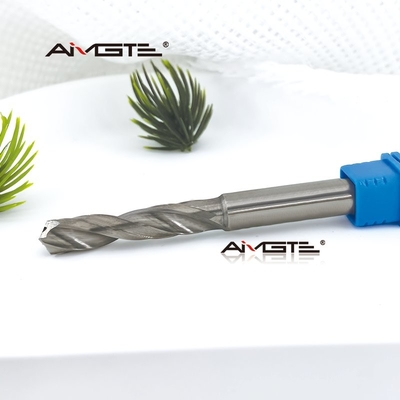

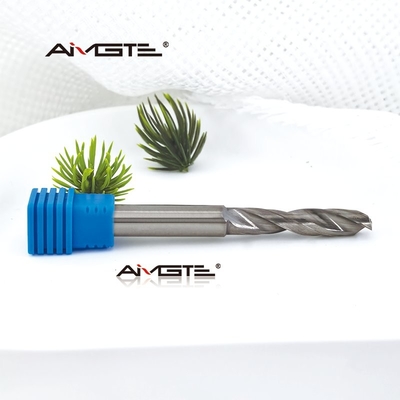

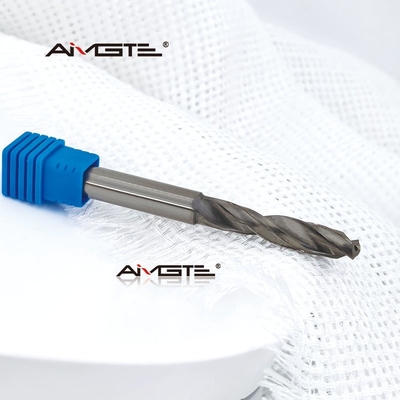

Product Images
2 Flute Coolant Through Drill for Aluminum High Speed CNC Carbide Drill Bit with Internal Coolant Channels Precision Hole Making Tool 0
2 Flute Coolant Through Drill for Aluminum High Speed CNC Carbide Drill Bit with Internal Coolant Channels Precision Hole Making Tool 1
Special Offers
Free sample: Free samples can be provided, if client is willing to pay the shipping cost.
New customer offer: Enjoy USD50 discount when you spend USD500+ on your first order.
Manufacturing Capabilities
Advanced grinding machines: All of our grinding machines are WALTER and SAACKE brands.
Precision inspection equipment: We have ZOLLER, OMEGA, PG1000 for inspecting each carbide tool.
Custom design expertise: Specialized in producing complicated customized carbide tools with designs tailored to specific work pieces.
Facility Images
2 Flute Coolant Through Drill for Aluminum High Speed CNC Carbide Drill Bit with Internal Coolant Channels Precision Hole Making Tool 2
2 Flute Coolant Through Drill for Aluminum High Speed CNC Carbide Drill Bit with Internal Coolant Channels Precision Hole Making Tool 3
2 Flute Coolant Through Drill for Aluminum High Speed CNC Carbide Drill Bit with Internal Coolant Channels Precision Hole Making Tool 4
